Numbering nested inputs in Phoenix LiveView

Last week I wrote about nested forms in Phoenix LiveView, and showed some techniques and use cases that go slightly beyond what you’ll find in the docs.

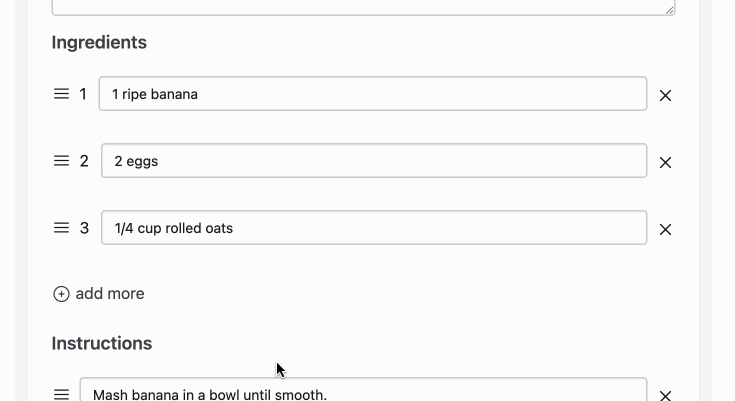

This week I’ll show another trick: how do you number the nested forms? By this I mean displaying an incrementing number on each row, like an <ol>. Here’s a preview of the end result:

It’s a simple requirement, but it’s not immediately obvious how to implement it.

We’ll stick with the same RecipeLive form from Mastering Phoenix Forms. Recall that this is a Phoenix LiveView form for creating or editing a recipe. Recipes have associated ingredients and instructions, and you can add and edit the nested associations using <.inputs_for />:

(For brevity’s sake I’ll only talk about numbering the “Ingredients” part of the form, but everything below would apply for the “Instructions” nested forms too.)

Normally, numbering a collection is trivially easy. You can just use Enum.with_index/2 with a for loop, e.g.:

 <div :for={{widget, i} <- Enum.with_index(@widgets, 1)}>
   {i} - {widget.name}
 </div>

(I’m passing 1 as the second argument to with_index/2 so the numbering starts from 1 and not the default 0)

But we can’t do this with inputs_for, as we don’t have direct access to the for. Where exactly would Enum.with_index/2 go here?

 <.inputs_for :let={ingredient_f} field={@form[:ingredients]}>
  <div class="flex items-center mt-4 mb-2 space-x-2">
    <.icon name="hero-bars-3" class="cursor-pointer relative w-5 h-5 mr-2 -top-1" />
    <div class="grow">
      <input type="hidden" name="recipe[ingredients_sort][]" value={ingredient_f.index} />
      <.input field={ingredient_f[:name]} type="text" phx-debounce />
    </div>

    <button
      type="button"
      name="recipe[ingredients_drop][]"
      value={ingredient_f.index}
      phx-click={JS.dispatch("change")}
      class="relative -top-1"
    >
      <.icon name="hero-x-mark" class="w-5 h-5" />
    </button>
  </div>
 </.inputs_for>

Fortunately, Phoenix already provides an index if you know where to look. Within each iteration, the ingredient_f variable (which is an instance of %Phoenix.HTML.Form{}) has a index attribute that we can use to number the fields:

 …
 <div id="ingredient-inputs" phx-hook="SortableInputsFor">
   <.inputs_for :let={ingredient_f} field={@form[:ingredients]}>
     <div class="flex items-center mt-4 mb-2 space-x-2">
+      {ingredient_f.index + 1}
       <.icon name="hero-bars-3" class="cursor-pointer relative w-5 h-5 mr-2 -top-1" />
       <div class="grow">
         <input type="hidden" name="recipe[ingredients_sort][]" value={ingredient_f.index} />
         <.input field={ingredient_f[:name]} type="text" phx-debounce />
       </div>
       …

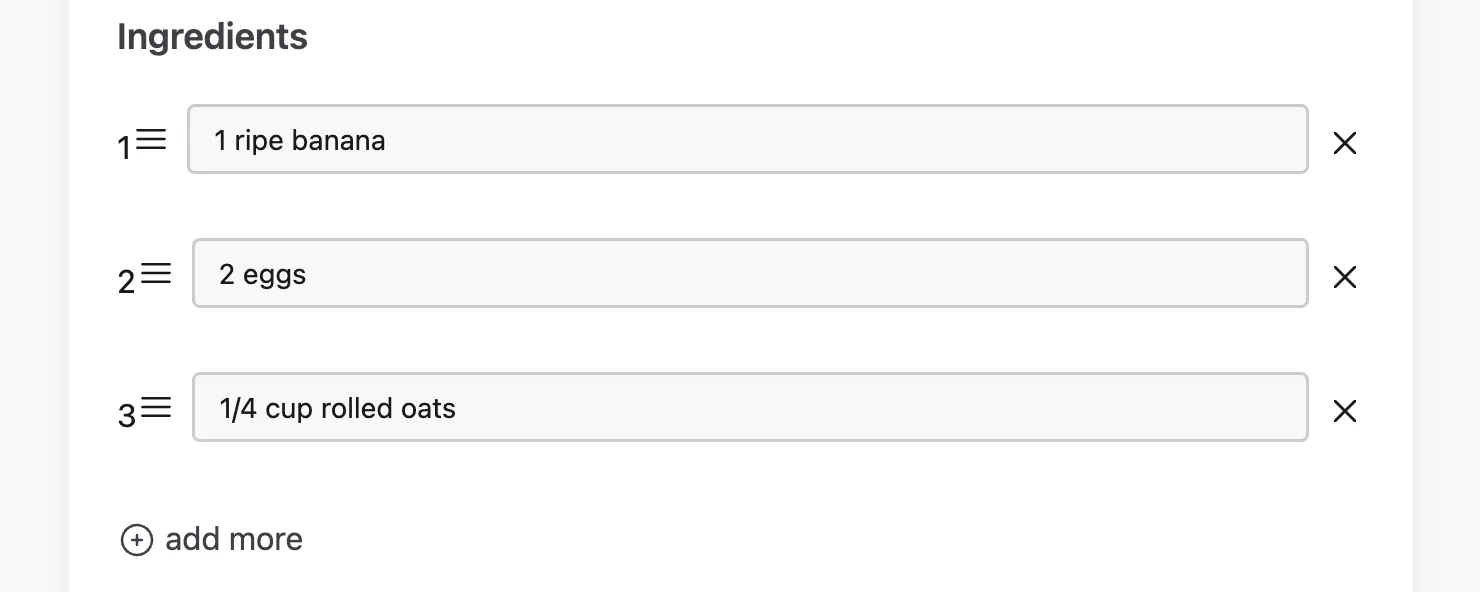

index starts from 0, so I’m writing index + 1 to render human-friendly numbers:

Let’s improve the layout and spacing:

 <div id="ingredient-inputs" phx-hook="SortableInputsFor">
   <.inputs_for :let={ingredient_f} field={@form[:ingredients]}>
     <div class="flex items-center mt-4 mb-2 space-x-2">
-      {ingredient_f.index + 1}
-      <.icon name="hero-bars-3" class="cursor-pointer relative w-5 h-5 mr-2 -top-1" />
+      <div class="mr-3 flex items-center mb-2">
+        <.icon name="hero-bars-3" class="cursor-pointer relative w-5 h-5 mr-2" />
+        <div class="h-5 leading-5">{ingredient_f.index + 1}</div>
+      </div>
       …

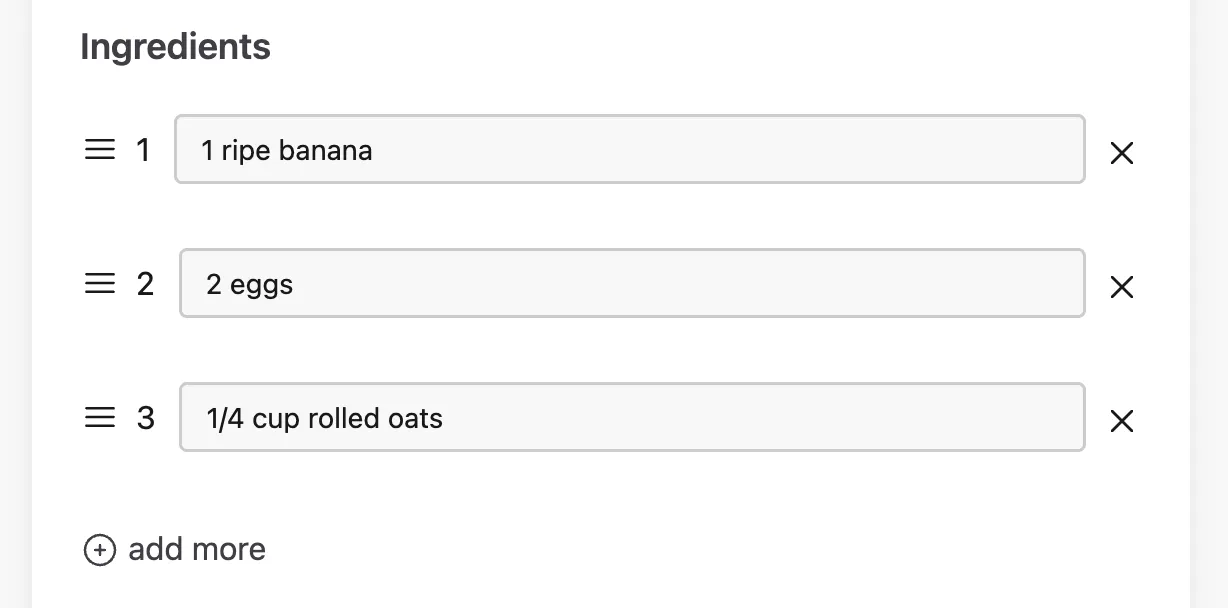

Now the ingredients are numbered, and the numbers stay updated when you add or remove rows:

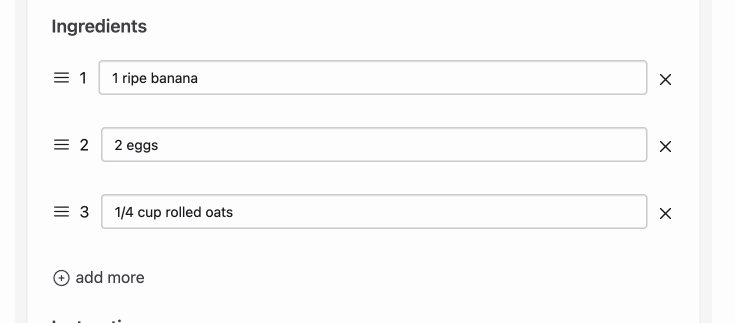

But there’s a bug: the numbers don’t stay in the correct order when I rearrange the ingredients:

See how “1, 2, 3” becomes “3, 1, 2”. I want the numbers to stay in their natural order no matter how I change the form.

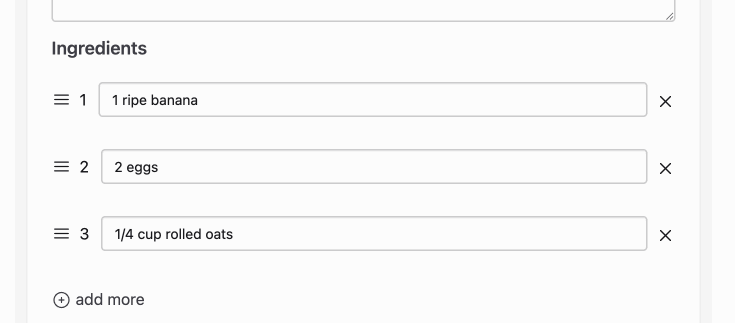

Strangely, it fixes itself the next time I change something on the form:

We’re sorting the ingredients with Sortable.js, configured via a hook:

 // assets/js/hooks/SortableInputsFor.js
 import Sortable from "../../vendor/sortable"

 const SortableInputsFor = {
   mounted(){
     new Sortable(this.el, {
       animation: 150,
       ghostClass: "opacity-50",
       handle: ".hero-bars-3"
     })
   }
 }

 export default SortableInputsFor;

The bug occurs because Sortable.js is Javascript that runs only in the browser, and doesn’t communicate anything to the server. We’ve moved the <input>s around in the DOM, but LiveView won’t know about it until it receives the next phx-change or phx-submit event where the form parameters are in the new order. Therefore LiveView won’t update its state, and so won’t update the DOM with the correct, re-ordered indexs.

To fix the numbers, we need to force LiveView to update. We can do this by manually triggering a phx-change event from the hook:

 // assets/js/hooks/SortableInputsFor.js
 import Sortable from "../../vendor/sortable"

 const SortableInputsFor = {
   mounted(){
     new Sortable(this.el, {
       animation: 150,
       ghostClass: "opacity-50",
-      handle: ".hero-bars-3"
+      handle: ".hero-bars-3",
+      onEnd: (event) => {
+        event.item.querySelector("input").dispatchEvent(
+          new Event("input", {bubbles: true})
+        )
+      }
     })
   }
 }

 export default SortableInputsFor;

This uses Sortable’s onEnd hook to run some custom Javascript after the drag-and-drop. To trigger phx-change, we just follow the docs: we pick an <input> on the form (it doesn’t matter which one) and manually dispatch a Javascript Event.

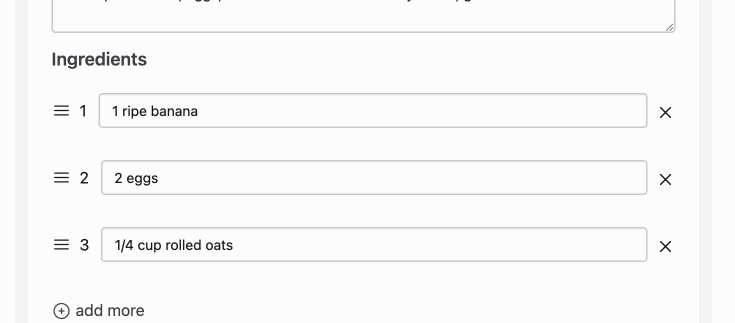

Now it works:

This wasn’t a lot of code, although it still feels somewhat complicated for what should be an extremely basic feature. I couldn’t figure out a simpler approach — let me know if you’ve got something better.

If you’ve got any other questions about LiveView, let me know and I might make it the subject of my next post.

And for the ultimate guide to LiveView’s <inputs_for>, sort/drop params, nested forms and more, be sure to check out Mastering Phoenix Forms 😉.
